TrackMyRide Windows Client Setup

• A computer that can run Windows 7, 8, 10, or 11 (Our test bed computer is a Minix Neo Z83-4 v2.0 fanless Mini PC , although any computer could be used)
• A USB GPS (We used a Stratux VK-162 G-Mouse - Remote Mount USB - External GPS Navigation Dongle)
• Keyboard
• Mouse
• The TrackMyRide Client Software

Setup Steps

1. Setup your computer by attaching a monitor, keyboard and mouse.
2. Make sure Windows is installed and you can establish a connection to the Internet.
3. Download the client software (the link above takes you to the latest version of the software).
4. Unzip (decompress) the files in the archive. We recommend creating a folder named TrackMyRide-Client in the C:\Program Files folder.
5. Plug the GPS receiver into one of the USB ports of your computer.

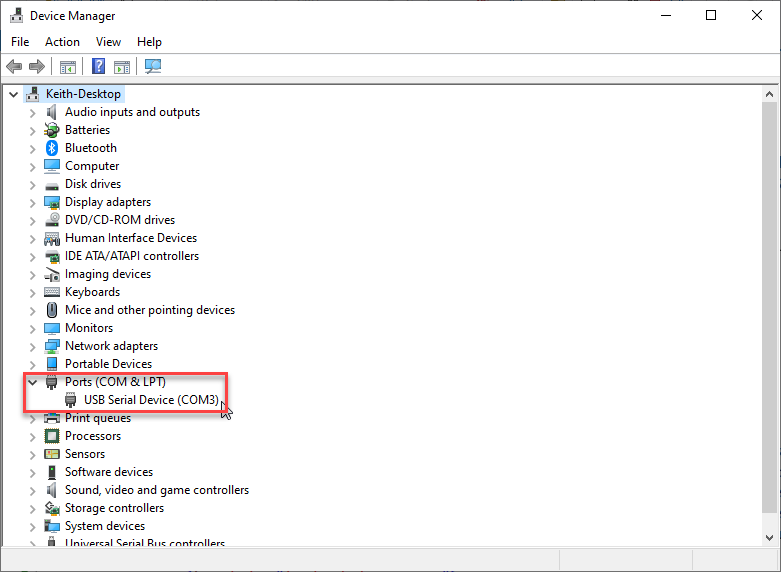

6. Use Device Manager to find the port that your GPS is plugged into.
7. •
8. Make a note of the value for the COM port. In this example it is COM3. You will need this value later to configure the application's communication port.

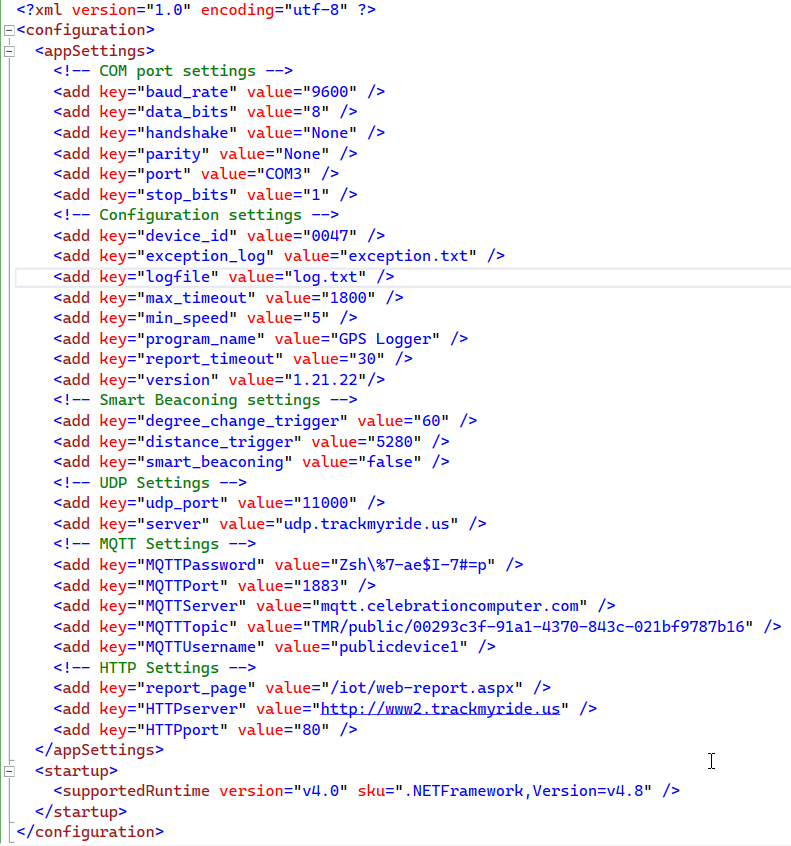

9. Navigate to the folder where the program was installed. Locate the file with the extension .config.
10. Edit the file with Notepad, Notepad++, or some other similar text editor. (In this example we used Notepad++).
11.
12. The definitions for each parameter are shown below. We only modify items in the <appSettings> section

13. COM Port Settings

    • baud_rate - This specifies the speed of the connection from the computer to the GPS receiver. This may vary depending on your GPS receiver. In most cases it should be set to 9600.
    • data_bits - This represents the number of bits (binary digits) returned in one frame of data. This usually is set to 8 bits.
    • handshake - A method used in serial communication to prevent data loss. Can be set to None, RequestToSend, RequestToSendXOnXOff, or XOnXOff. In most cases this should be set to None.
    • parity - A simple method to check for single-bit data errors during serial transmissions. Can be set to Even, Mark, None, Odd, or Space. Since the GPS receiver is connected directly over USB partiy is not necessary. Leave this setting set to None unless your GPS receiver communicates differently.
    • port - Specifies the communications port that the computer uses to communicate with the GPS receiver. This value will be a COMx value, where x represents a number. You used Device Manager above to determine the COM port used.
    • stop_bits - This parameter tells the serial connection how many bits are added to the data bits and specifies the number of bits that signify the end of the frame. Allowed values are: 1 or 2. In most cases the number of stop bits is 1.

14. Configuration Settings

    • device_id - The id of your device (always a four character value). You must locate the id of your device otherwise you will be reporting data for the wrong device. View this link for information on finding your device id.
    • exception_log - The name of the file where the program puts any error messages.
    • logfile - The name of the file where the program logs all reported data.
    • max_timeout - If using the SmartBeaconing feature this specifies the maximum amount of time (in seconds) the program waits before reporting position date. See this article for more information about SmartBeaconing.
    • min_speed - This specifies the minimum speed the device must be moving before a report is made. Certain GPS devices report a heading change when starting from a dead stop. This prevents the device from making erronous reports. We recommend leaving this setting at 5 (mph).
    • program_name - The display name of the program. This should be left at the default setting.
    • report_timeout - If you are not using SmartBeaconing mode the program will make regular reports at this interval (in seconds).
    • version - The version number of the program. The program uses this value to check for program updates and should not be changed without help from technical support.

15. Smart Beaconing Settings

    • degree_change_trigger - If SmartBeaconing is active, this value tells the program the number of degrees in heading change that must occur before a report is made. You can set this value to any number between (0 and 360). We recommend setting it to 60.
    • distance_trigger - How far the device must travel before a report is made. Once the device travels this far (in feet) a new report is generated.
    • smart_beaconing - If set to true SmartBeaconing is on. If set to false SmartBeaconing is off and the device reports every x seconds as specified in the report_timeout value above.

16. UDP Settings

    • udp_port - The UDP port number that the program sends reports to. For testing purposes support might request you to change this number. In all other cases it should be set to 11000.
    • server - The IP address or host name of the UDP server. Unless otherwise requested by support set to udp.trackmyride.us.

17. MQTT Settings

    • MQTTPassword - The MQTT user's connection password. This password is found in your user's profile. Click here for more information on how to locate your MQTT username and password.
    • MQTTPort - The MQTT port the device uses to communicate with the MQTT server. By default this should be port 1883. Do not change this port unless directed by support.
    • MQTTServer - Hostname of the MQTT server. This is the server your device sends the report data to. Unless directed by support, this should be mqtt.celebrationcomputer.com.
    • MQTTTopic - This is the topic to which the client program publishes. For free account types the topic must be TMR/public/device guid where device guid is the unique id of your device. Click here for help on locating your device's guid.
    • MQTTUsername - All MQTT communications are secured with a username and password. Each device has a unique username and password that is specific to the device. Click here. to see how to find the username and password for your device.

18. HTTP Settings

    • report_page - Specifies the web page to which the client sends the report data. Unless otherwise specified by support this should be /iot/web-report.aspx.
    • HTTPServer - IP address or host name of the web server to which the reports are being made. Unless other specified by support this should be http://www2.trackmyride.us.
    • HTTPPort - The port number used by the client to communicate with the web server. This should be 80 unless otherwise specified by support.
