Peplink Pepwave Router Configuration

Requirements

At a minimum you will need the following:

  • A device that can be used to connect to the Pepwave router. We used a laptop computer plugged directly into the router in this example, but you could use a Mac, tablet, smart phone or any device that has the ability to connect to the router's admin interface.
  • A Peplink Pepwave router (we used a MAX BR1 for this example)

Router Firmware

Before configuring the router we recommend that you upgrade the router to the latest firmware. Peplink has added several features particular to GPS forwarding with the later versions of their firmware.

You can find the latest firmware for you router by visiting the Peplink site.

By default most Peplink routers have an IP address of 192.168.50.1. In order to connect to this you must do one of the following on your device.

  • Ensure that your device is DHCP enabled (most common method)
  • Give your device a static IP address somewhere in the 192.168.50.0/24 network range (advanced)

If you are plugged in or connected to the router you can view your network properties to find out your router's (default gateway) IP address.

Open up your web browser (we are using Microsoft Edge for this demonstation) and navigate to the web address 192.168.50.1 or whatever the address is for your router or default gateway.

Connecting to your router
Connecting to the router

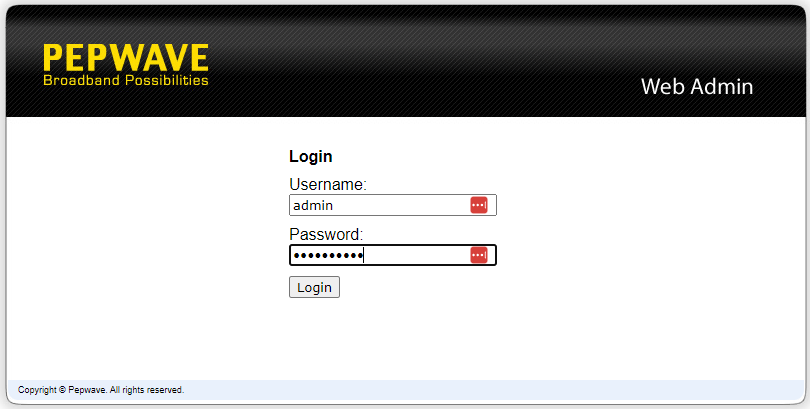

Login to your router using your username and password. The default username and password is admin (all lowercase). When you connect the router prompts you for your login information as shown below. Enter your username and password and click the "Login" button.

Logging in to your router
Logging into the router

From the router menu, click the "Advanced" menu as shown in the figure below.

Select the Advanced menu
Selecting the Advanced menu

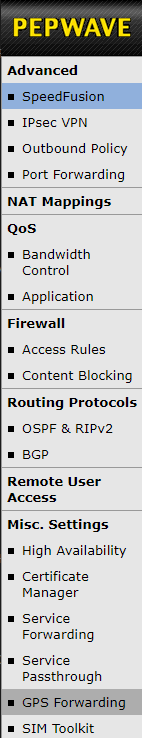

When the "Advanced" menu is displayed, click the "GPS Forwarding" option.

Select the Advanced menu
Advanced menu options

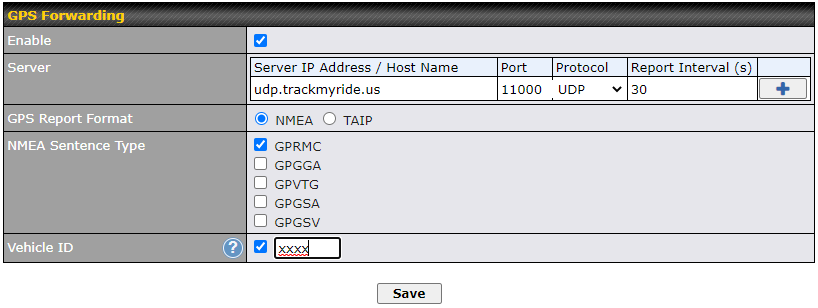

When the GPS Forwarding option displays clicks the "Enable" check box. This allows you to select the other options.

Select the Advanced menu
GPS Forwarding options

On this page enter the following:

  • Server IP Address / Hostname - udp.trackmyride.us
  • Port - 11000
  • Protocol - Select UDP
  • Report Interval (s) - The minimum value (in seconds) you can select depends on your account type. Enter the report interval you desire. Note! The shorter the interval the more data you will be using which might result in higher than desired cellular data plan usage.
    • Free account devices are limited to once every 2 minutes or 120 seconds
    • Developer account devices are limited to once every 1 minute or 60 seconds
    • Pro account devices are can report as often as once every thirty (30) seconds
  • GPS Report Format - Select "NMEA"
  • NEMA Sentence Type - Select "GPRMC". The TrackMyRide system does not interpret any other sentence types.
  • Vehicle ID - Enter the ID of your device. Click here for information on locating your device ID

Click the "Save" button

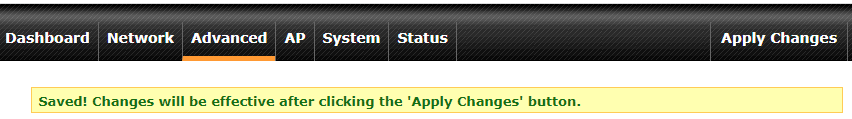

The system displays a confirmation message.

The confirmation message
The system confirmation message

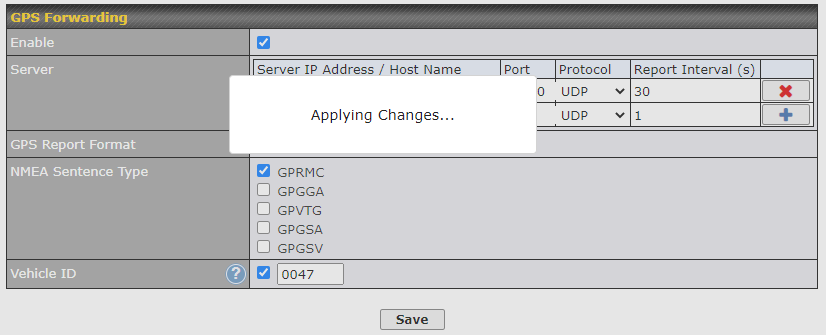

Click the confirmation button to update the router.

The confirmation message
Confirming the changes

The settings are saved. Once the router finishes saving the changes you are returned to the main router page. Logout. Your router will begin sending data to the TrackMyRide servers.

The confirmation message
Confirmation Message

The process is complete.
